Measuring for your custom fit bike

Diagram to illustrate the key measurements needed to measure for a custom carbon bike frame. — Click image to enlarge

Contact Points

The first step we use to plan your custom geometry is to look at your current riding position. Your body will have adapted to this riding position so we take it as a starting point and carefully consider how to improve things.

You can take these measurements yourself. You'll only need a tape measure. Just position your bike on a flat and level floor with the back wheel touching a wall (your bike should be upright and at 90 degrees / perpendicular to the wall). Then use this diagram to measure the length of each coloured line on your bike and complete the form below.

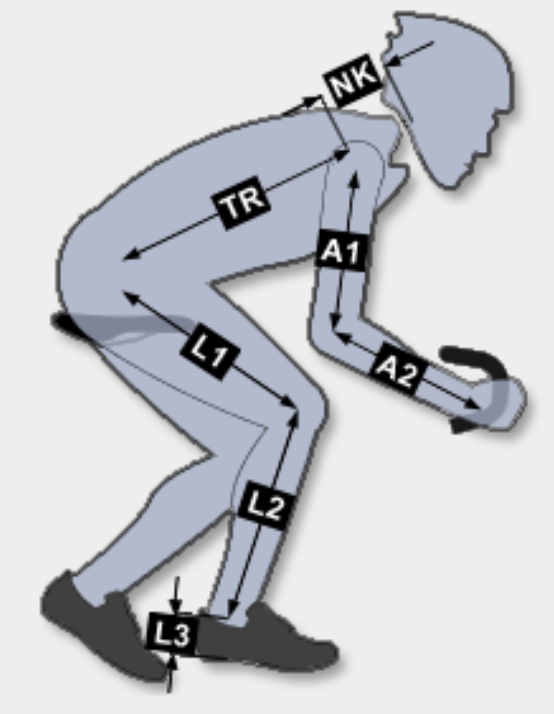

Cyclist dimensions drawing for a custom carbon bike frame made by Filament Bikes.

Body Dimensions

The next step is to take dimension data from your body. Just use a tape to measure each dimension indicated in the diagrams and complete the form below.

Name

First Name

Last Name

Email Address

Purple (cm)

Yellow (cm)

Red (cm)

Blue (cm)

Pink (cm)

Turquoise (cm)

Height A (cm)

Height to sternal notch B (cm)

Inside leg C (cm)

Thigh D (cm)

Arm E (cm)

Shoulder width F (cm)

Shoe size

Weight (kg)

A1 (cm)

A2 (cm)

NK (cm)

TR (cm)

L1 (cm)

L2 (cm)

L3 (cm)
